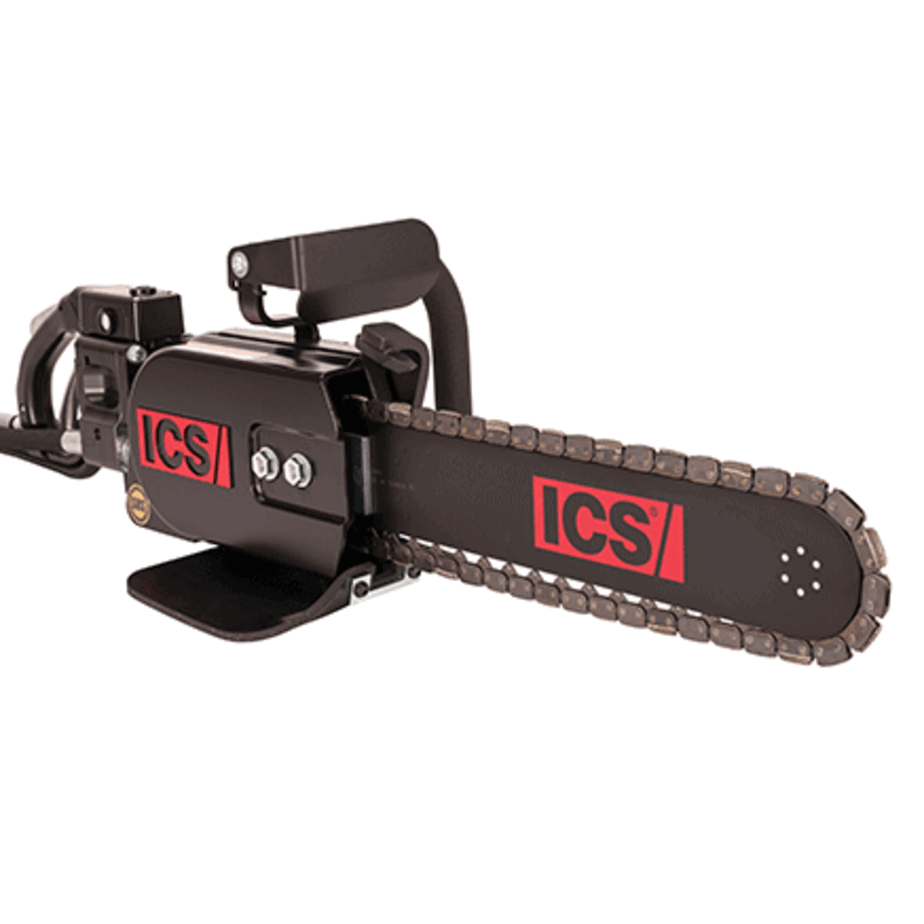

890F4 HYD. 15-INCH POWERGRIT PACKAGE - 12GPM/1FT WHIPS

SPECIAL ORDER ITEM - CALL FOR LEAD TIME

Cut up to fifteen inch pipe with the powerful ICS 890F4 hydraulic. The safest way to cut pipe. Uses .444" Pitch bars and chains. All ICS Saws are Wet Cutting Systems - minimum 2gpm @ 20psi
$4,699.95
WEIGHT: 27.3 LBS. w/ 15-inch bar & chain - 1 ft whips
BAR LENGTH: Up to 25-inches (10"/15"/20" also available)
POWERHEAD DIMENSIONS : 58cm (23") L x 27cm (10.5") H x 24cm (9.5") W
TORQUE: 170 Inch-lbs
HORSEPOWER: 17.5Hp
MOTOR SPEED: 6500 rpm
HYDRAULIC SUPPLY: 12GPM @ 2500 PSI
NOISE LEVEL : 107 dB @ 3 ft (1 m)
VIBRATION LEVEL: 2.0 meters/second2 (front handle), 6.0 meters/second2 (rear handle)
WATER SUPPLY: Minimum 20 psi (1.5 bar)
Article number: IPH-566125
Availability: Out of stock
All saw packages include FREE GROUND FREIGHT

ICS 701A-PG 15-Inch PowerGrit saw package includes:

  • (1) Each P/N 566112 890F4 Power Head
  • (1) Each P/N 537764 PowerGrit-29 Chains
  • (1) Each P/N 523080 Force4 15-inch Guide Bar

The ICS pipe cutting saws allow less excavation and safer cutting. PowerGrit chain technology grind through ductile iron, cast iron, PVC, HDPE, and Insituform lining.



FEATURES AND BENEFITS

  • Comfortable redesigned rear handle
  • Operates Force4.444-pitch PowerGrit chains
  • Cuts up to 15-inch pipe
  • Powerful 12 GPM six horsepower hydraulic motor


ICS 890F4
Data Sheet

Cutting Tips
ICS 890F4
Owner's Manual


Chain Tensioning
Tip Sheet

Powergrit Data Sheet
PowerGRIT
Data Sheet

890F4 Safety Notifications

READ THE Safety NOTICES from the ICS 890F4 Operation Manual, before operating this equipment. It is each end user's responsibility to utilize the Manufacturer's published information for current changes.
