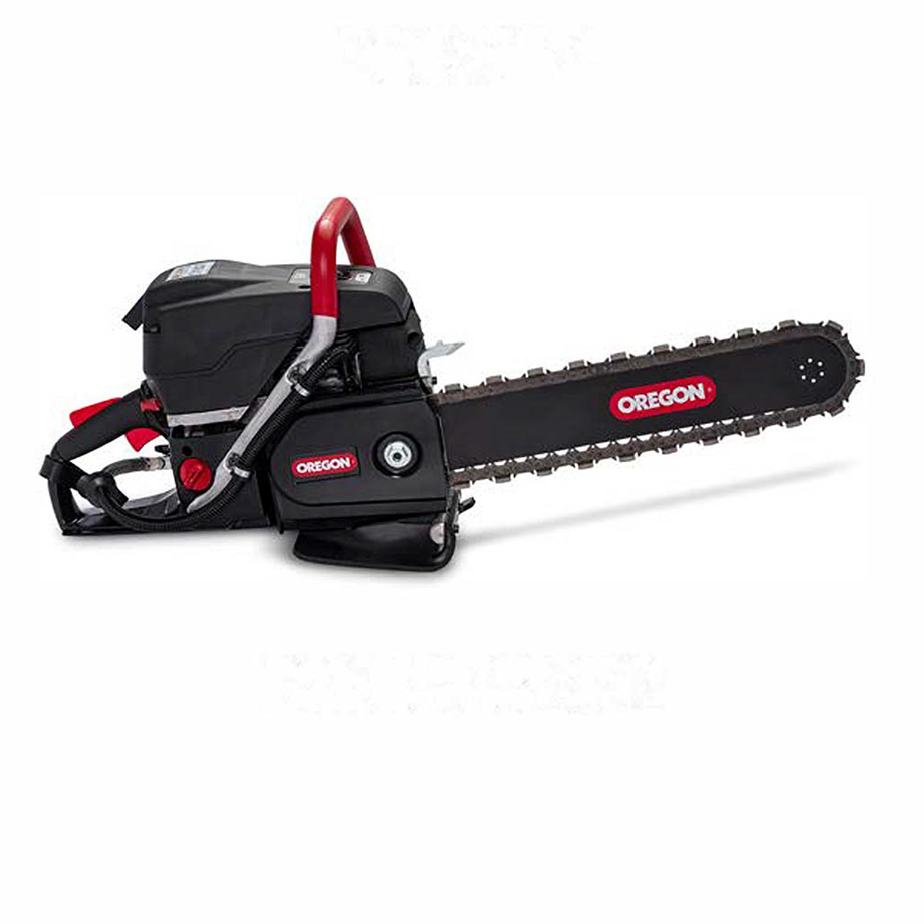

695XL-F4 16-IN FORCE4 SAW PACKAGE

For the uncompromising concrete cutter looking for the most powerful gas saw ICS offers. Includes TWO 16-inch Force 4 standard chain and 16-inch ProForce guide bar. Includes TWO CHAINS and FREE GROUND FREIGHT.
$3,279.95
WEIGHT: 21 LBS. powerhead only
BAR LENGTH: Up to 16-inches (20-inches w/ precut)
ENGINE SPEED : 9,300 +/- 150 rpm (max)/2,700 +/- 100 rpm (idle)
HORSEPOWER: 4.8kW (6.4 hp) @ 9000 rpm
TORQUE: 5.7 Nm (50.4 in-lbs) @ 7200 rpm
ENGINE TYPE : 2-stroke, air cooled
DISPLACEMENT: 94cc (5.7 cu-in)
CHAIN SPEED: 28 m/s (5500 ft /min)
POWERHEAD DIMENSIONS : 46cm (18") L x 36cm (14") H x 30cm (12") W
NOISE LEVEL : 102 dB @ 3 ft (1 m)
VIBRATION LEVEL: 8 meters/second2 (front handle)
WATER SUPPLY: Minimum 20 psi (1.5 bar)
FUEL MIX RATIO : 50:1 (4%) fuel-to-oil
FUEL CAPACITY : 0.26 gal (1.0 liter) estimate 15-18 minute run time per tank
Article number: IPG-575872
Availability: Out of stock
All saw packages come with FREE GROUND FREIGHT!

ICS 695XL-F4 16-Inch concrete saw package includes:

  • (1) Each P/N 575826 695XL-F4 Power Head
  • (2) Each P/N 525342 Force4 Standard Chains
  • (1) Each P/N 524490 Force4 16-inch Guide Bar

Based in the previous 695 platform, the 695XL has been improved with easier starting, quieter operation, and increased efficiency. This package includes heavier duty .444" pitch chains and is a great choice professional concrete cutters.



FEATURES AND BENEFITS

  • Re-engineered piston and cylnder provide cooler operation
  • Operates Force3 3/8" pitch chains as well as .444-pitch chains*
  • Up to 16-inch cutting depth
  • Powerful 6.4 hp 2-stroke engine
  • Easy-to-tune carburetor
  • Easy-to-start in all weather and altitudes



ICS 695XL DATA SHEET
ICS 695XL
Data Sheet

Cutting Tips
ICS 695XL
Owner's Manual


Chain Tensioning
Tip Sheet

Cutting Tips
Cutting Tips
Sheet

695XL Safety Notifications

READ THE Safety NOTICES from the ICS 695XL Operation Manual, before operating this equipment. It is each end user's responsibility to utilize the Manufacturer's published information for current changes.
