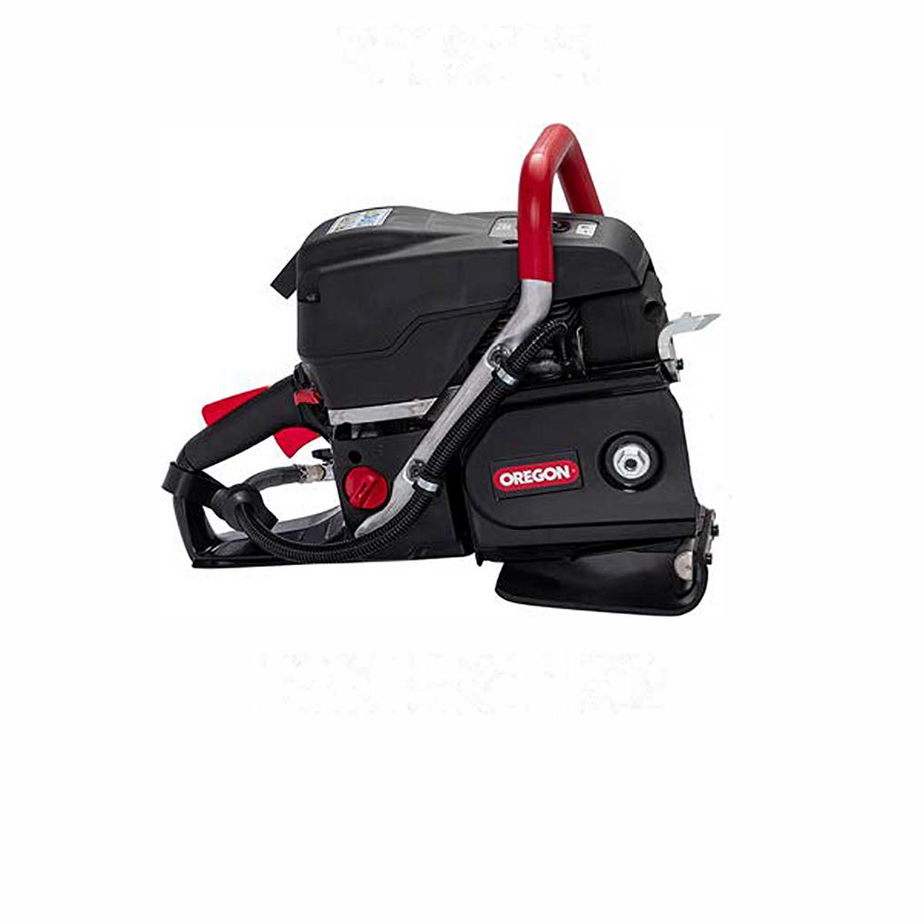

581192 695XL-GC ICS Gas Powerhead, No Bar or Chain

Add your review

Configured with 3/8-inch pitch sprocket for Force3 chains. 6.4 HP 2-cycle engine. Power head only. Free ground shipping.

Default

Make a choice:

$2,219.95

+ -

Add to cart

Specifications

WEIGHT:	21 LBS. powerhead only
BAR LENGTH:	Up to 16-inches (20-inches w/ precut)
ENGINE SPEED :	9,300 +/- 150 rpm (max)/2,700 +/- 100 rpm (idle)
HORSEPOWER:	4.8kW (6.4 hp) @ 9000 rpm
TORQUE:	5.7 Nm (50.4 in-lbs) @ 7200 rpm
ENGINE TYPE :	2-stroke, air cooled
DISPLACEMENT:	94cc (5.7 cu-in)
CHAIN SPEED:	28 m/s (5500 ft /min)
POWERHEAD DIMENSIONS :	46cm (18") L x 36cm (14") H x 30cm (12") W
NOISE LEVEL :	102 dB @ 3 ft (1 m)
VIBRATION LEVEL:	8 meters/second2 (front handle)
WATER SUPPLY:	Minimum 20 psi (1.5 bar)
FUEL MIX RATIO :	50:1 (4%) fuel-to-oil
FUEL CAPACITY :	0.26 gal (1.0 liter) estimate 15-18 minute run time per tank

ics

Brand:

ICS

Add to wishlist / Add to compare / Print

Information

Article number:	IPG-581192
Availability:	In stock

CESSCO is the largest ICS dealer in North America

Designed for the pro cutter in mind. Configured for 3/8" pitch chains.

FEATURES AND BENEFITS

Re-engineered piston and cylnder provide cooler operation
Operates Force3 3/8" pitch chains as well as .444-pitch chains*
Up to 16-inch cutting depth
Powerful 6.4 hp 2-stroke engine
Easy-to-tune carburetor
Easy-to-start in all weather and altitudes

ICS 695XL
Data Sheet

ICS 695XL
Owner's Manual

Chain Tensioning
Tip Sheet

Cutting Tips
Sheet

FORCE3 Chain
Catalog

695XL Safety Notifications

READ THE Safety NOTICES from the ICS 695XL Operation Manual, before operating this equipment. It is each end user's responsibility to utilize the Manufacturer's published information for current changes.
