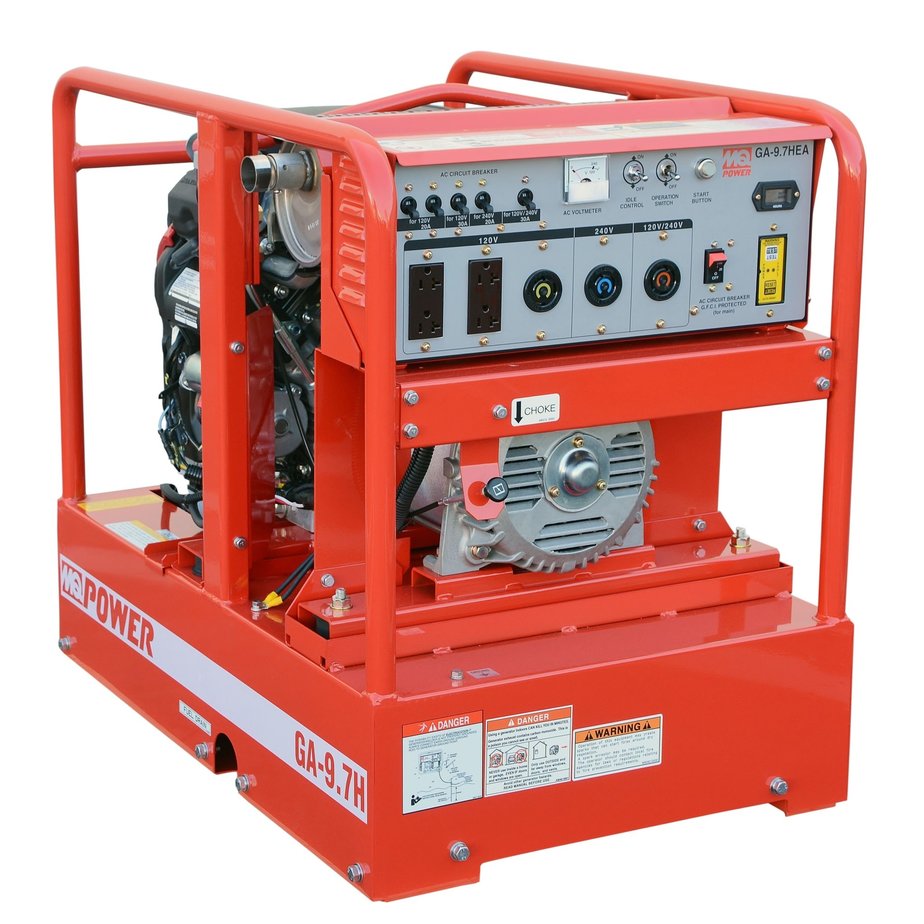

GA97HEA MQ 9.7kW Generator, Skid, Honda Electric Start*
CESSCO sells the Multiquip GA97HEA with free freight to most lower 48 destinations. *Battery not included.
| Article number: | MUL-GA97HEA |
| Availability: | Out of stock |
Multiquip GA97HEA Generator*
*Battery Not Included
*Prices, features and equipment specs. are subject to change without notice.
The generator for the toughest jobs. This delivers enough power to run a variety of tools and equipment. Powered by a twin-cylinder engine with electric start, it offers up to 10 hours of continuous run time.

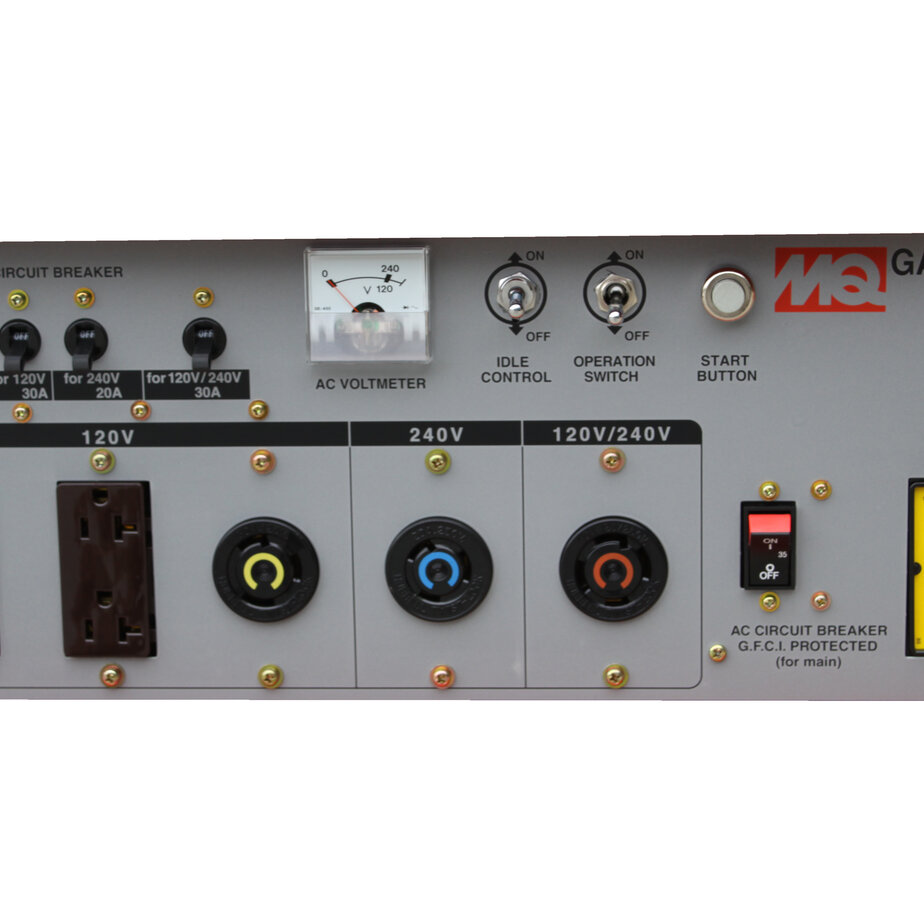

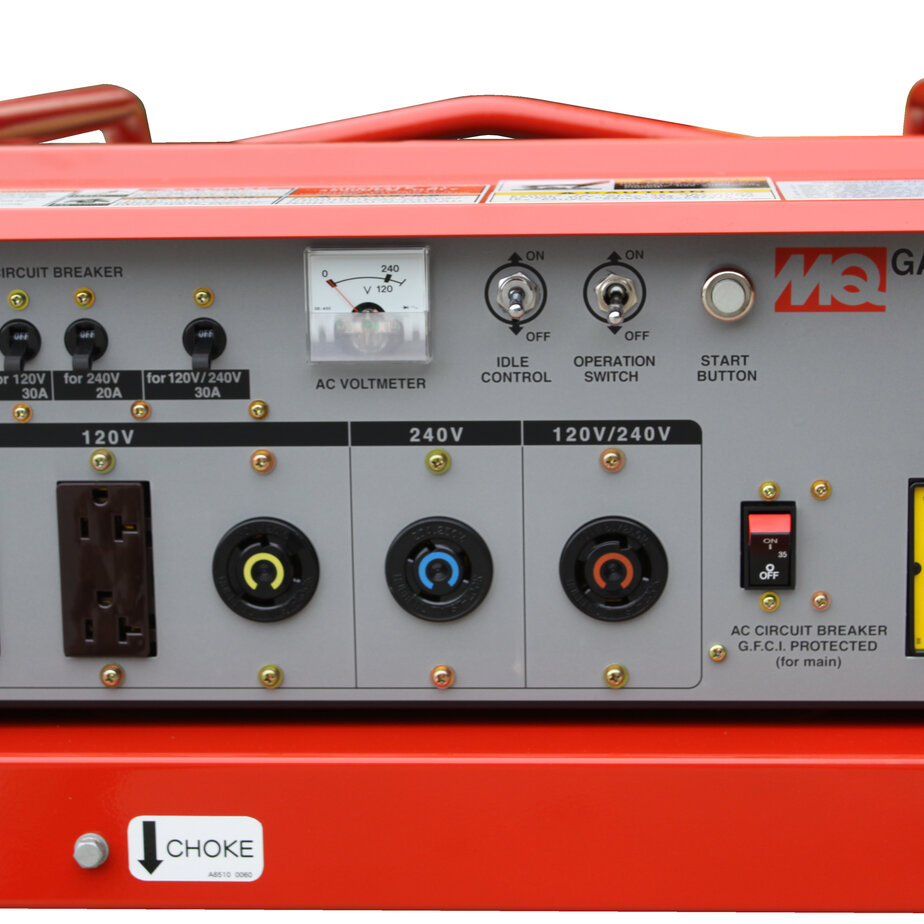

- Twin duplex receptacles and three twist-lock receptacles for job site versatility
- 100% copper windings for maximum conductivity
- Alternator design eliminates maintenance by removing brushes and slip rings
- Heavy-duty 1-inch (25 mm) steel pipe frame and shock mounts protect the generator
- Includes folding lifting bale as standard equipment
- Powered by a twin-cylinder Honda GX630 engine with low-oil shutdown, automatic idle control
- Full panel GFCI protection - OSHA and NEC compliant
- Visit mfg. website for more info: https://www.multiquip.com/multiquip/GA97HEA.htm
-
Unit Specifications Alternator Design Brushless Frequency 60 hz Phase Single Phase Voltage 120/240 V Sound level at 30 ft. 79 dBA Fuel Tank Capacity 10 gal 37.8 L Power Generation Maximum Continuous Watts 9700 W 8400 W Amps at 120V 80.8 A 70 A Amps at 240V 40.4 A 35 A Receptacles & Circuit Breakers Main Circuit Breaker 40 A Number of Poles 2 1 Receptacle of Each: 5-20R 125V GFCI 20A
L5-20R 125V T-Lock 20A
L5-30R 125V T-Lock 30A
L14-30R 125/250V T-Lock 30ADimensions & Weights Overall Length 31.25 in 800 mm Overall Width 21.25 in 540 mm Overall Height 27.5 in 700 mm Shipping Dimensions 32 x 22.5 x 31.5 in
81 x 56 x 91 mmOperating Weight 402.73 lb. 182.67 kg Shipping Weight 342 lb. 155 kg Engine Specifications Engine Make/Model Honda GX-630 Start Method Electric Engine Power 16.6 HP 12.4 kW Engine RPM 3600 Fuel Type Gasoline
